PDF file for pringing CF Catalog・CT Catalog・CP Catalog
|
Characteristics

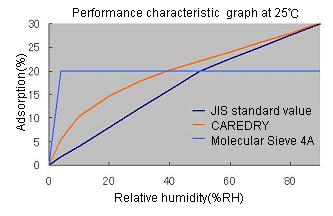

CARE DRY® is made of materials conforming to MIL (US Military Specifications, MIL-D-3464E), and CT and CF series meet JEDEC J-STD-033D standard. Moisture is physically absorbed between the layers. The laminar structuer of CARE DRY®'s clay is well growing,CARE DRY® shows high adsorption capacity at low humidity. |
|
| ITEM | JIS | CARE DRY® | |
| Adsorption | 20%RH | 8min. | 13.2% |
| 50%RH | 20min. | 21.0% | |
| Moisture content | 2.5% max | 2.5% max | |
| pH value | 4～8 | 7～8 | |
| Specific resistance(Ω・cm) | 3000min. | 10000min. | |
| Component | wt% |
| SiO2 | 62.7 |
| Al2O3 | 15.9 |
| K2O | 0.2 |
| Fe2O3 | 4.9 |
| MgO | 4.9 |
| CaO | 3.0 |
| Ig-Loss and bound water | 8.0 |
Safety
CARE DRY® is classified as Generally Recognized As Safe (GRAS) by the FDA.The raw material of CARE DRY® is a hydrated compound of sodium ,calcium,and silica-alumina. It is not dangerous to the human body even if it should be ingested by mistake. It is quite stable chemically. It is not deliquescent and no change of configuration by adsorption.CARE DRY® is naturally occurring substance, and doesn't contain environment management material. It meets RoHS standards.
Specifications
CP type is enclosed in extremely safe perforated plastic film conforming to the standard for Food and Additives, Section 3 Specifications for Materials for Equipment and Containers/Packages. (Typical applications: candies, rice crackers, dried laver, pharmaceuticals, health foods)
CF&CT type is enclosed in nonwoven cloth that is able to endure hard handling as like the export packaging and preservation of heavy load,etc. As a dust-free desiccant, it meets MIL-D-3464E(U.S.Militally Standard) type II.(Typical applications: export packaging, machine parts,electronic parts and appliances)
| Type | Weight（ｇ） | Quantity（packets) | Standard size(mm） |
| CF10 | 10 | 1000 | 75×60 |
| CF20 | 20 | 600 | 75×80 |
| CF30 | 30 | 400 | 110×80 |
| CF50 | 50 | 300 | 110×100 |
| CF100 | 100 | 160 | 150×87 |
| CF200 | 200 | 90 | 150×152 |
| CF300 | 300 | 60 | 200×152 |
| CF500 | 500 | 35 | 230×152 |
| CF1K | 1000 | 18 | 290×152 |
| Type | Weight（ｇ） | Quantity（packets） | Standard size（mm） |
| CT5 | 5 | 2000 | 55×60 |
| CT10 | 10 | 1000 | 75×60 |
| CT20 | 20 | 600 | 75×80 |
| CT30 | 30 | 400 | 110×80 |
| CT75 | 75 | 200 | 135×87 |
| CT100 | 100 | 160 | 150×87 |
| Type | Weight（ｇ） | Quantity（packets） | Standard size（mm） |
| CP1 | 1 | 10000 | 40×25 |
| CP2 | 2 | 6000 | 55×35 |
| CP3 | 3 | 4000 | 55×40 |
| CP5 | 5 | 2400 | 55×50 |
| CP10 | 10 | 1200 | 75×60 |
| CP20 | 20 | 660 | 75×80 |
| Type | Weight（ｇ） | Quantity（packets） | Standard size（mm） |
| CS06M | 0.6 | 16000 | 40×20 |
